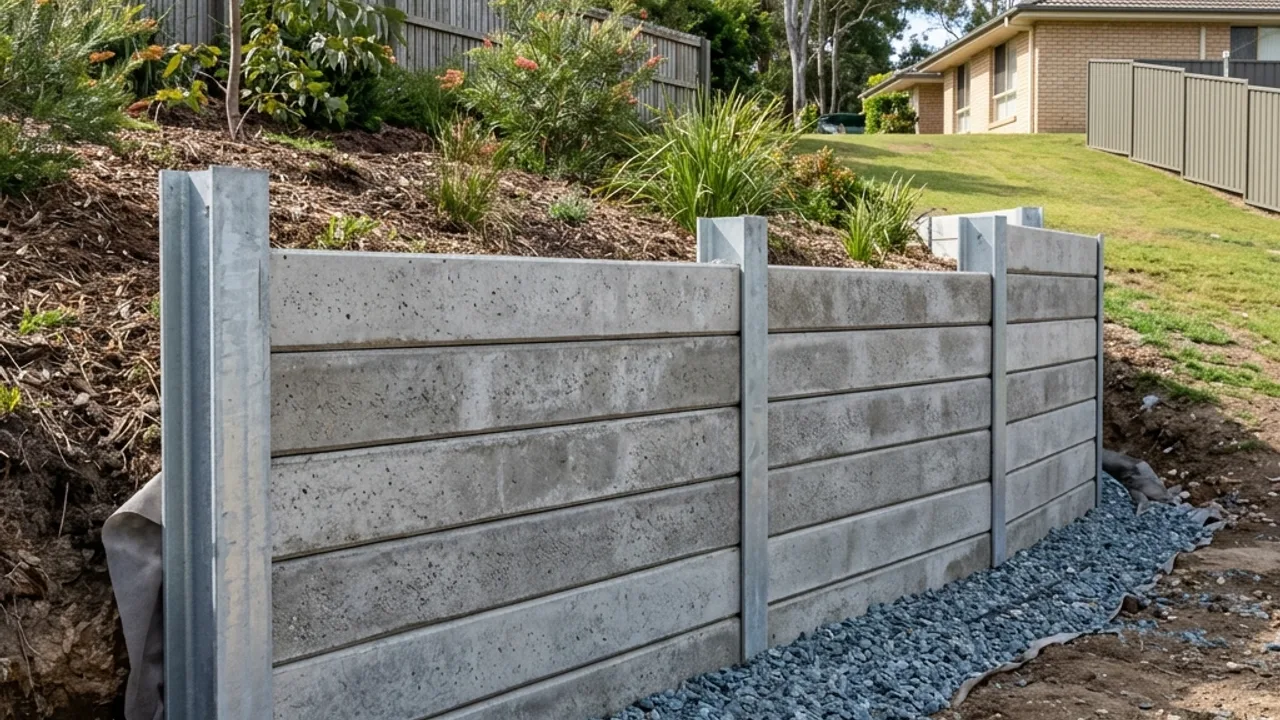

Concrete Sleeper Retaining Walls on a residential sloping site

Concrete Sleeper Retaining Walls in Brisbane

Reinforced sleeper systems for Brisbane replacements, boundaries and cut-and-fill projects where post embedment, access and drainage are assessed together.

Concrete Sleeper Retaining Walls site fit and planning

Concrete Sleeper Retaining Walls can suit long residential boundaries, driveway cuts and replacement walls where a slim reinforced system preserves usable ground. The first question is whether the system matches the retained height, ground conditions, surcharge loads and construction access. Reinforced sleeper systems for Brisbane replacements, boundaries and cut-and-fill projects where post embedment, access and drainage are assessed together.

A Brisbane site review should pay particular attention to post embedment, machine reach, sleeper handling and the effect of concentrated loads above the retained soil. Measurements taken from only the visible face can miss embedment, buried courses or a second retained level nearby. A useful brief therefore includes the overall slope and every structure that could load the wall.

Galvanised posts form the structural rhythm, while reinforced sleepers span between them. Set-out must resolve corners, steps and changes in top level before excavation begins. The listed options - galvanised steel post installation, reinforced concrete sleeper placement, capping and transition detailing - describe parts of the scope, but final sizes and construction details must come from the site assessment and any required design.

Drainage, finish and written scope

Profiles range from restrained plain panels to timber-grain or stone-like faces, with capping and planting used to soften the finished line. Samples should be viewed in outdoor light and compared with fences, paving and planting. Appearance matters, but it cannot override structural capacity, drainage, durability or access for safe construction.

Concrete sleeper construction is governed by the post grid. Each corner, step, curve and terminal condition affects where steel posts can stand and how full-length sleepers are lowered between them. On a tight Brisbane boundary, that handling space may decide whether panels arrive progressively or require a different installation sequence. Ask the scope to state sleeper thickness, reinforcement, post coating, embedment assumptions and how cut or damaged finishes are treated. If a fence is planned above, its loads and attachment should be resolved in the design instead of drilled into a completed cap later.

Included service elements

  • Galvanised steel post installation
  • Reinforced concrete sleeper placement
  • Capping and transition detailing

Retaining wall drainage and site decisions

When considering concrete sleeper retaining walls, a durable wall starts with a clear picture of the land it will retain. Record the full change in ground level, the wall length, nearby driveways or buildings, visible water paths, boundary position and the space available for excavation. Those facts influence the design and the equipment that can safely reach the work zone.

For concrete sleeper retaining walls, drainage belongs in the structural conversation because trapped water adds pressure and can move fine soil through gaps. A typical design may combine free-draining aggregate, suitable filter fabric and a subsoil collection line, but the correct outlet depends on the property. Existing stormwater arrangements need to be checked before the trench is closed.

Retaining walls Brisbane approval checks

When concrete sleeper retaining walls is being scoped, Brisbane City Council describes limited circumstances in which a retaining wall may not need building approval. Height, surcharge loading and distance from another wall or building must be assessed together. Easements, overlays, protected vegetation, boundaries and nearby services can introduce separate requirements.

For concrete sleeper retaining walls, start by documenting the site, confirming the boundary and identifying loads above and below the wall. Larger, loaded or unusual walls may need engineering and building approval. The Queensland Building and Construction Commission provides a public search for checking licence details presented for regulated work.

Building a useful written scope

A clear scope separates confirmed work from provisional work.

  • Name the wall system, finish and design responsibility.
  • Describe excavation, spoil removal, drainage and outlet treatment.
  • Cover temporary support, fence interfaces, access protection and restoration.

Photographs supporting concrete sleeper retaining walls help when they show the complete wall, both ends, the ground above and below, cracking or movement, wet patches, street access and nearby structures. Add approximate measurements and explain when the problem first appeared so the first response can focus on the right questions.

Before sending the retaining wall enquiry

  • Measure wall length, maximum retained height and the broader change in ground level across the property.
  • Take wide photographs from both ends, then add close views of movement, decay, staining or erosion.
  • Show buildings, driveways, pools, fences and neighbouring ground that may place loads near the wall.
  • Measure gates, side passages, stairs and delivery turns between the street and the proposed work area.
  • Mark downpipes, surface runoff, wet patches, pits and the apparent destination of existing drainage lines.
  • Collect available boundary, service, survey, engineering and approval documents before assumptions enter a quotation.
  • State whether the job is isolated or connected to landscaping, renovation, fencing, pool or driveway work.

Brisbane locations for this wall service

The GapBardonAshgrovePaddingtonToowongChapel HillSt LuciaKenmoreIndooroopillyMount GravattCamp HillCoorparooHolland ParkCarindaleFerny Grove

Concrete Sleeper Retaining Walls questions

What site details matter most for Concrete Sleeper Retaining Walls?
Start with a wide photograph of the whole wall, then record its approximate length and maximum retained height. Include the ground above and below, delivery access, water symptoms and nearby structures.
How should drainage be checked for Concrete Sleeper Retaining Walls?
Inspect the area after rain, trace wet marks through the garden and identify nearby downpipes or paved runoff. A designed drainage zone still needs a practical, lawful outlet.
When might Concrete Sleeper Retaining Walls need engineering?
Engineering may be needed for higher or loaded walls, difficult ground, or work near a building, pool, driveway or another retaining structure. A qualified assessment should confirm the pathway.
What access notes help a Concrete Sleeper Retaining Walls enquiry?
Measure the narrowest passage from the street to the work area. Photograph gates, turns, steps and overhead limits, and estimate how far materials and excavated soil must travel.
How can quotations for Concrete Sleeper Retaining Walls be compared?
Compare the designed wall system, excavation, spoil removal, drainage, approvals, finishes and restoration. Ask which items are fixed inclusions and which remain provisional until the ground is opened.
